Q-Tech QPL晶體振蕩器

發布時間：2021-06-10 17:03:51 瀏覽：2077

某些電子元器件需要高度穩定性的交流信號，而LC振蕩器的穩定性差，工作頻率漂移容易(即形成的交流信號的工作頻率很容易變化)。在振蕩器中，一種獨特的元器件石英晶體能夠形成高度穩定性的信號。這類選用石英晶體的晶體振蕩器稱為晶體振蕩器。

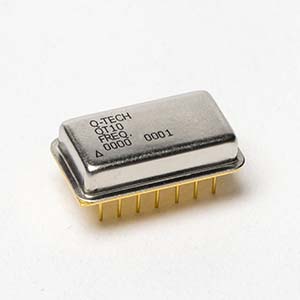

Q-Tech QPL晶體振蕩器是體現晶體或振蕩器能否符合非常性能卓越規定要求的檢測標準之一。將其運用于國防裝備和軍事產品的零部件，以符合這一標準是必不可少的。

Q-Tech是首家出現在MIL-O-55310(現為MIL-PRF-55310)的合格產品名單上的公司?，F(xiàn)階段，Q-Tech獲得了28多個MIL-PRF-55310斜件編號的認證，提供了各種各樣封裝形式、電流電壓和邏輯類型及其溫度穩定性的組合，符合了軍事和空間的所有規定要求。

R-深圳市立維創展科技有限公司授權代理銷售Q-TECH產品，備件現貨，歡迎與業界同行合作。

詳情了解Q-Tech請點擊： http ： //www.sztianjufu.com/public/brand/60.html

或聯系我們的銷售工程師： 0755- 83642657 QQ ： 2295048674

數據表	軍用零件號	邏輯類型	電源電壓	頻率范圍
MIL-PRF-55310/08	M55310/08J w/ AMENDMENT 1	TTL	5Vdc	50Hz to 50MHz
MIL-PRF-55310/09	M55310/09J w/ AMENDMENT 1	TTL	5Vdc	400kHz to 60MHz
MIL-PRF-55310/10	M55310/10J w/ AMENDMENT 1	TTL	5Vdc	1kHz to 60MHz
MIL-PRF-55310/11	M55310/11G w/ AMENDMENT 1	CMOS	10 to 15Vdc	.05MHz to 10MHz
MIL-PRF-55310/12	M55310/12H w/ AMENDMENT 1	CMOS	10 to 15Vdc	.05MHz to 10MHz
MIL-PRF-55310/13	M55310/13J	CMOS	10 to 15Vdc	300Hz to 10MHz
MIL-PRF-55310/14	M55310/14H w/ AMENDMENT 1	TTL	5Vdc	.1Hz to 25MHz
MIL-PRF-55310/15	M55310/15G w/ AMENDMENT 1	CMOS	6.75 to15Vdc	.01Hz to 10MHz
MIL-PRF-55310/16	M55310/16K	TTL	5Vdc	375kHz to 80MHz
MIL-PRF-55310/16	M55310/16K	TTL	5Vdc	.1Hz to 80MHz
MIL-PRF-55310/17	M55310/17F w/ AMENDMENT 1	TTL	5Vdc	250kHz to 50MHz
MIL-PRF-55310/18	M55310/18F w/ AMENDMENT 1	CMOS	5 to 15Vdc	.01Hz to 15MHz
MIL-PRF-55310/19	M55310/19E w/ AMENDMENT 1	TTL	5Vdc	1MHz to 60MHz
MIL-PRF-55310/20	M55310/20F	TTL	5Vdc	40kHz to 60MHz
MIL-PRF-55310/21	M55310/21H	TTL	5Vdc	1MHz to 60MHz
MIL-PRF-55310/26	M55310/26D w/ AMENDMENT 1	HCMOS	5Vdc	.01MHz to 65MHz
MIL-PRF-55310/26	M55310/26D w/ AMENDMENT 1	HCMOS	5Vdc	375kHz to 65MHz
MIL-PRF-55310/26	M55310/26D w/ AMENDMENT 1	HCMOS	5Vdc	.01MHz to 65MHz
MIL-PRF-55310/26	M55310/26D w/ AMENDMENT 1	HCMOS	5Vdc	375kHz to 65MHz
MIL-PRF-55310/27	M55310/27E	HCMOS	5Vdc	1MHz to 85MHz
MIL-PRF-55310/28	M55310/28D	TTL	5Vdc	1MHz to 85MHz
MIL-PRF-55310/29	M55310/29C	HCMOS (Tristate)	5Vdc	.2MHz to 85MHz
MIL-PRF-55310/30	M55310/30E	CMOS	3.3Vdc	450kHz to 100MHz
MIL-PRF-55310/33	M55310/33D	CMOS	5Vdc	500kHz to 85MHz
MIL-PRF-55310/34	M55310/34D	CMOS	3.3Vdc	500kHz to 150MHz
MIL-PRF-55310/35	M55310/35C	CMOS	2.5Vdc	1MHz to 133MHz
MIL-PRF-55310/36	M55310/36C	CMOS	1.8Vdc	1MHz to 100MHz
MIL-PRF-55310/37	M55310/37C	CMOS	5Vdc	500kHz to 85MHz
MIL-PRF-55310/38	M55310/38C	CMOS	3.3Vdc	500kHz to 150MHz
MIL-PRF-55310/39	M55310/39C	CMOS	2.5Vdc	1MHz to 133MHz
MIL-PRF-55310/40	M55310/40C	CMOS	1.8Vdc	1MHz to 100MHz
