Hypertronics HYPER系列連接器HYPS060S127A001
發布時間：2026-01-12 09:44:05 瀏覽：44

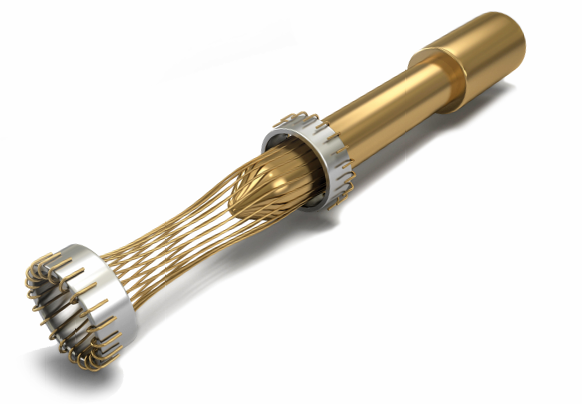

Hypertronics (Smiths Interconnect) 的 HYPER 系列基于專利的 Hypertac?
雙曲面插孔技術，通過獨特的彈性接觸絲設計提供多條線性接觸路徑，具有極低的插拔力、超長的使用壽命(高達10萬次插拔)以及卓越的抗震動與沖擊性能，是專為軍事、醫療、航空航天等嚴苛環境下追求高可靠性與高穩定性的核心連接方案。
HYPER 系列提供多種直徑和終端類型的選擇：
接觸件直徑：涵蓋從 0.40 mm (0.016 in.) 到 6.12 mm (0.240 in.) 的廣泛范圍 。
終端樣式：包括壓接 (Crimp)、封閉式 (Closed end)、焊杯式 (Solder cup)、直式 (Straight) 和兩端開放式
(Open both ends) 。
材料與電鍍：通常采用磷青銅、黃銅或鈹銅作為材料，并進行不同厚度的金電鍍以保證性能。
HYPER 系列接觸件型號及參數總表
一、 插座 (Female Contacts / Sockets)
| 直徑 (mm) | 訂購型號 | 內部部件號 | 端接方式 | 接觸電阻 (m?) | 額定電流 (A) | 插拔力 (N) | 接觸壽命 (cycles) | 材料 | 鍍層 (μm) |
| 0.4 | HYPS040C127A001 | YSK004-002AH | 壓接 (Crimp) | < 8.0 | 1 | 0.44 | Up to 100k | BeCu/Brass | 1.27 Au |
| 0.6 | HYPS060S127A001 | YSK006-005AH | 直式 (Straight) | < 5.0 | 4 | 0.08-0.56 | Up to 100k | BeCu/Brass | 1.27 Au |
| 0.6 | HYPS060S127I001 | 16477 REF. 4 Z57 | 直式 (Straight) | < 8.0 | 2 | 0.1 | Up to 100k | BeCu/Brass | 1.27 Au |
| 0.76 | HYPS076S127A001 | YSK0076-011AH | 直式 (Straight) | < 5.0 | 5 | 0.89 | Up to 100k | BeCu/Brass | 0.25 Au |
| 0.76 | HYPS076S127A002 | YSK0076-012AH | 直式 (Straight) | < 5.0 | 5 | 0.89 | Up to 100k | BeCu/Brass | 0.20 Au |
| 1 | HYPS100C025I001 | 18369-Z78 | 壓接 (Crimp) | < 2.5 | 7.5 | 0.4 | Up to 100k | BeCu/Brass | 1.27 Au |
| 1 | HYPS100S020F001 | 0100232-98-N1 | 直式 (Straight) | < 5.0 | 5 | 0.25-1.0 | Up to 100k | PhBz/Brass | 1.27 Au |
| 1.02 | HYPS102E127A001 | YSK0102-060AH | 封閉端 (Closed end) | < 2.5 | 7.5 | 1 | Up to 100k | BeCu/Brass | 1.27 Au |
| 1.02 | HYPS102E127A002 | YSK0102-004AH | 封閉端 (Closed end) | < 2.5 | 7.5 | 1 | Up to 100k | BeCu/Brass | 0.25 Au |
| 1.02 | HYPS102O127A001 | YSK0102-120AH | 開式兩端 (Open both ends) | < 2.5 | 7.5 | 1 | Up to 100k | BeCu/Brass | 0.25 Au |
| 1.2 | HYPS120E025I001 | 23401-Z65 | 封閉端 (Closed end) | < 2.5 | 9 | 0.6 | Up to 100k | BeCu/Brass | 0.20 Au |
| 1.2 | HYPS120S025I001 | 23349-Z52 | 直式 (Straight) | < 2.5 | 9 | 0.6 | Up to 100k | BeCu/Brass | 1.27 Au |
| 1.5 | HYPS150C020F001 | 0150682-20-G1 | 壓接 (Crimp) | < 3.0 | 8 | 0.4-1.4 | Up to 100k | PhBz/Brass | 1.27 Au |
| 1.5 | HYPS150C025I001 | 15837-Z66 | 壓接 (Crimp) | < 2.5 | 8 | 0.8 | Up to 100k | BeCu/Brass | 1.27 Au |
| 1.5 | HYPS150E127A001 | YSK015-111HT | 封閉端 (Closed end) | < 2.5 | 10 | 5.5 | Up to 100k | BeCu/Brass | 0.20 Au |
| 1.5 | HYPS150S127A001 | YSK015-004AH | 直式 (Straight) | < 2.5 | 10 | 5.5 | Up to 100k | BeCu/Brass | 0.25 Au |
| 2 | HYPS200C020F001 | 0200422-20RN1 | 壓接 (Crimp) | < 2.0 | 15 | 1.2-4.0 | Up to 100k | PhBz/Brass | 1.27 Au |
| 2 | HYPS200C025I001 | 23420-Z72 | 焊接杯 (Solder cup) | < 2.0 | 15 | 1.2-4.0 | Up to 100k | PhBz/Brass | 1.27 Au |
| 2.5 | HYPS250O127A001 | YSK025-030AH | 開式兩端 (Open both ends) | < 1.5 | 15 | 7.8 | Up to 100k | BeCu/Brass | 1.27 Au |
| 3.5 | HYPS350E127A001 | YSK035-063AH | 封閉端 (Closed end) | < 0.8 | 50 | 9.7 | Up to 100k | BeCu/Brass | 1.27 Au |
| 3.5 | HYPS350O127A001 | YSK035-004AH | 開式兩端 (Open both ends) | < 0.8 | 50 | 9.7 | Up to 100k | BeCu/Brass | 1.27 Au |
| 3.6 | HYPS360C127A001 | YSK036-005AH | 焊接杯 (Solder cup) | < 0.5 | 50 | 3 | Up to 100k | BeCu/Brass | 1.27 Au |
| 4.3 | HYPS430O127A001 | YSK043-004AH | 開式兩端 (Open both ends) | < 0.35 | 100 | 25 | Up to 100k | BeCu/Brass | 1.27 Au |
| 6.12 | HYPS612O127A001 | HPG241F32AH | 壓入式 (Press fit) | < 0.25 | 200 | 44.5 | Up to 100k | BeCu/Brass | 1.27 Au |
二、 插針 (Male Contacts / Pins)
| 直徑 (mm) | 訂購型號 | 內部部件號 | 端接方式 | 材料 | 鍍層 (μm) |
| 0.4 | HYPP040C127A001 | YPN004-001H | 壓接 (Crimp) | Phosphor bronze | 1.27 Au |
| 0.5 | HYPP050C025A001 | YPN005-049G | 壓接 (Crimp) | Phosphor bronze | 0.254 Au |
| 0.5 | HYPP050S127A001 | YPN005-004H | 直式 (Straight) | BeCu | 1.27 Au |
| 0.5 | HYPP050S127I001 | 18999-T15 | 直式 (Straight) | Brass | 1.27 Au |
| 0.5 | HYPP050S127I002 | 19068-T15+TT1 | 直式 (Straight) | Phosphor bronze | 1.27 Au |
| 0.5 | HYPP050U025A001 | YPN005-090G | 焊接杯 (Solder cup) | Phosphor bronze | 0.254 Au |
| 0.6 | HYPP060C127A001 | YPN006-021H | 壓接 (Crimp) | Brass | 1.27 Au |
| 0.6 | HYPP060S127I001 | 16390-T15 | 直式 (Straight) | Brass | 1.27 Au |
| 0.6 | HYPP060S127I002 | 13280 REF. 1 T15 | 直式 (Straight) | Brass | 1.27 Au |
| 0.76 | HYPP076S127A001 | YPN0076-101H | 直式 (Straight) | Brass | 1.27 Au |
| 1 | HYPP100C010I001 | 17666-T11+TT1 | 壓接 (Crimp) | Brass | 0.10 Au |
| 1 | HYPP100U010I001 | 13032-T11 | 焊接杯 (Solder cup) | Brass | 0.10 Au |
| 1.02 | HYPP102U127A001 | YPN0102-052H | 焊接杯 (Solder cup) | Brass | 1.27 Au |
| 1.2 | HYPP120S127I001 | 23876-T15 | 直式 (Straight) | Brass | 1.27 Au |
| 1.5 | HYPP150C127A001 | YPN015-009RG | 壓接 (Crimp) | Brass | 1.27 Au |
| 1.5 | HYPP150S025I001 | 16121-T12 | 直式 (Straight) | Brass | 0.25 Au |
| 1.5 | HYPP150U127A001 | YPN015-001H | 焊接杯 (Solder cup) | Brass | 1.27 Au |
| 1.5 | HYPP150U127I001 | 13380-T12 | 焊接杯 (Solder cup) | Brass | 1.27 Au |
| 2 | HYPP200S025I001 | 21602-T12 | 直式 (Straight) | Copper | 0.25 Au |
| 2.5 | HYPP250C127A001 | YPN025-003H | 壓接 (Crimp) | Brass | 1.27 Au |
| 3.5 | HYPP350C127A001 | YPN035-025RH | 壓接 (Crimp) | Brass | 1.27 Au |
| 3.5 | HYPP350U127A001 | YPN035-024H | 焊接杯 (Solder cup) | Copper | 1.27 Au |
| 3.6 | HYPP360C025G001 | 213671020 | 壓接 (Crimp) | Brass | 0.25 Au |
| 4.3 | HYPP430C127A001 | YPN043-014RI | 壓接 (Crimp) | Tellurium copper | 0.762 Au |
| 6.12 | HYPP612C076A001 | YPN0612-027RI | 壓接 (Crimp) | Tellurium copper | 0.762 Au |
深圳市立維創展科技有限公司授權代理銷售Hypertronics連接器產品， Hypertronics連接器面向高可靠性市場，以其獨有的Hypertac雙曲面連接專利技術，為連接器產品提供性能優異的可靠連接。Hypertronics產品主要為全球軍用、航空航天、醫療、艦載領域服務，歡迎咨詢。
